Features:
* Advanced digital control and IGBT inverter technology
* Good consistency and stable performance
* Easy to adjust parameters and Easy to update software
* User-friendly interface
* Practical welding processing management function
* High-quality MMA welding
* High-quality TIG welding
* Various arc starting modes: non-contact arc starting, low current lift-arc and high current arc starting
* Various remote control modes available
* Robot system for automatic welding available
* Wide input voltage range adaptable
* Be able to weld many kinds of metal, such as stainless steel.
Carbon steel. alloy steel, titanium and copper etc.
Parameters:

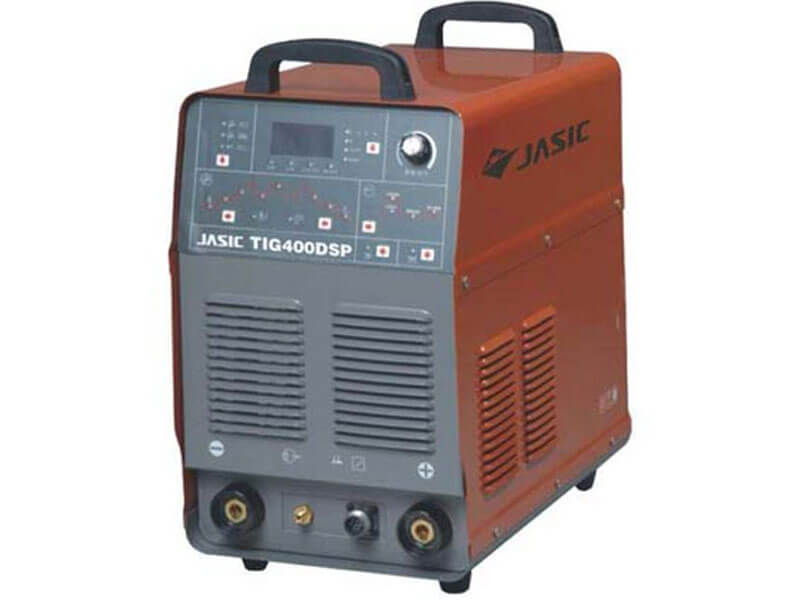

| Unit | TIG400DSP(J11) |
Common parameter | ||
Input voltage/frequency | V/Hz | 3-phase 380V AC，50/60Hz |
Recommended fuse capacity | A | 40 |
Rated output | A/V | 400/36 |
No-load voltage | V | 63 |
Rated duty cycle | % | 60 |
Power factor |
| COSφ≥0.85 |
Efficiency | % | η≥85 |
Dimensions | mm | 540×275×510 |
Weight | Kg | 32 |
Insulation class |
| F |
Protection class |
| IP21S |
MMA parameter | ||
Welding current range | A | 10～400 |
Arc force | A | 0～10（0~100A/ms，absolute maximum: 250A） |
Arc starting current range |
| 10～410 |
Arc starting time range | S | 0.01～1(0-noncontact arc starting) |
Arc stopping adjustment range | V | 30.0～80.0 |
TIG parameter | ||
Pre-flow time | S | 0～15.0(0-scrape arc starting) |
Post-flow time | S | 0～20.0 |
TIG operation mode |
| 20 modes(16 fixed modes and 4 programmable modes) |
Arc starting current range | A | 5～410 |
Arc maintaining current range | A | 5～410 |
Upslope time | S | 0.1～99.9 |
Down slope time | S | 0.1～99.9 |
DC TIG parameter | ||
Welding current range | A | 5～410 |
Pulse TIG parameter | ||
Pulse peak current adjustment range |
A
|
5～410
|
Pulse base current adjustment range | ||
Pulse frequency range | Hz | 0.1～400 |
P/B range | % | 1～99 |
