FEATURES:
1.Two functions of DC TIG and MMA,low cost&good quality..
2.TIG welding having self-lock and unself-lock,damping time adjust,suitable for nonfereous metal,non-ferrous alloy,stainless steel welding
3.TIG welding have HF&contact arc start double function,easy for start.
4.MMA welding have thrust and start arc function,easy welding,suitable for most welding material.
5.Be able to be equipped with water-cooling torch.
6.Be able to use all kind of welding rod.
Applicable Materials: Stainless steel,low carbon steel, high strength steel and Cr-Mo steel,copper,titanium alloy.
Scope of Aplication: Petroleum industry,Chemical industry,Power Supply,Pressured Vessels,Stainless steel products
PARAMETERS:

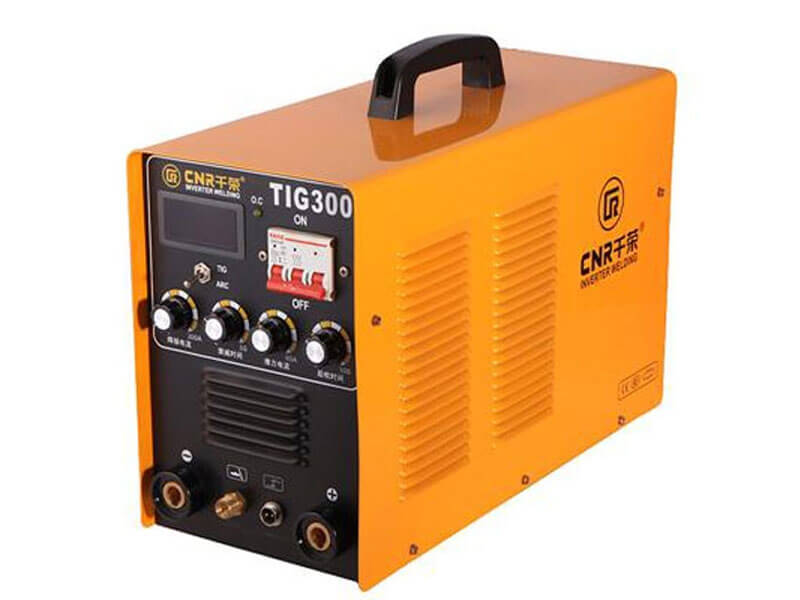

Model | TIG-300 |
Input power voltage/frequency(V/Hz) | AC380±15% (Single Phase,50/60Hz) |
Rated input power capacity(KVA) | 8.3 |
Output current Range (A) | 20-300 |
Rated Output Voltage (V) | 22 |
No-load voltage (V) | 55 |
Duty Cycle (%) | 60 |
No-load Loss (W) | 60 |
Weight (kg) | 18.6 |
Dimensions (MM) | 480x205x355 |
Postflow Time (S) | 2-10 |
Current of ARC (A) | 20-225 |
ARC Force (A) | 0-100 |
Welding Thickness(MM) | 0.5-12 |
Insulation Class | F |
Efficiency (%) | 85 |
Power Factor(CosΦ) | 0.93 |
Protection Class | IP23 |
