Description:

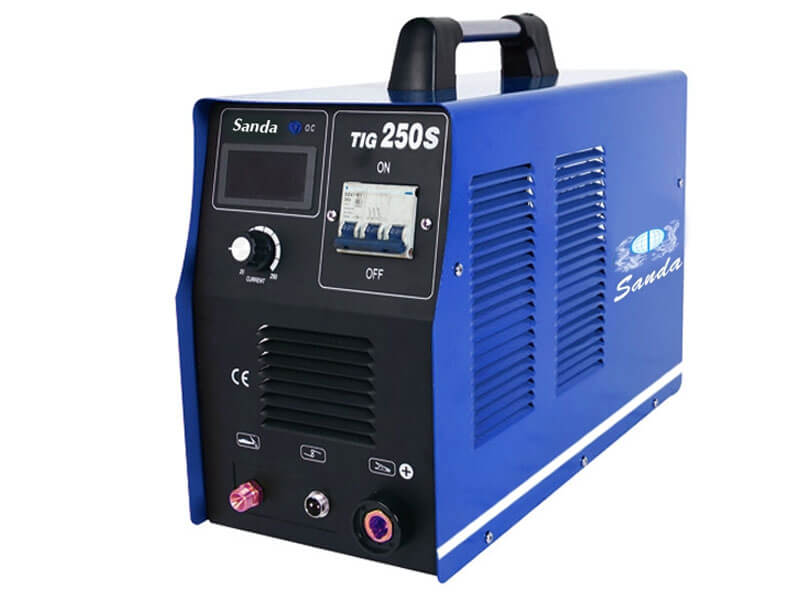

Fan-cooled,inverter welding machine Compact,light weight,portable,high efficiency Ideal for welding steel,stainless,copper,etc....
Technical Parameters
| Power voltage (V): | 380V ± 10% | Frequency | 50/60HZ |
| Rated input power capactiy | 6.4KVA | Output current range | 10-250A |
| Rated output voltage | 20V | Duty cycle | 60% |
| Efficiency | 85% | Power factor | 0.93 |
| Insulation class | F | Protection class | IP23 |
| Weight | 17KGS | Overall dimension | 480*205*355MM |
