FEATURES:
1.Adopting advanced inverter technology and excellent imported capacity equipment,high working efficiency,small in size and light in weight.
2.Protection equipment are sent internally to prevent over heat,over current,lack of voltage etc to ensure safety operation
3.Three protections for inside structure:anti-dust,anti-damp and anti-septicize increased machine reliability under harsh environment
4.High frenquency pressurization arc starting and pulse heat arc starting design which is easy for arc starting,wide range for current adjusting and surperior of cost performance.
5..Small size and portable.
6..HF Arc-starting and strong welding permeability.
7..Even and beautiful welding surface. Applicable Materials: Cast iron, Mild steel, High tensile steel,alloy steel,stainless steel,pure copper,redcopper,Cr-Mo steel,Titanium Alloy
Scope of Aplication: Precise Instruments , Meters, Decoration, Hardware, Smallparts,Maintenance.Suit for welding thin plate specially.
PARAMETERS:

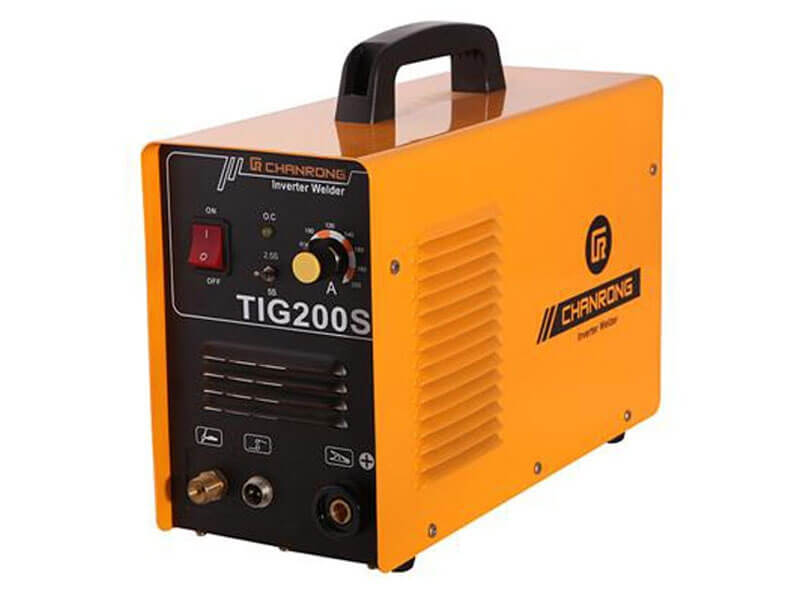

Model | TIG-200S |
Input power voltage/frequency(V/Hz) | AC220±15% (Single Phase,50/60Hz) |
Rated input power capacity(KVA) | 4.5 |
No-load voltage (V) | 43 |
Rated Output Voltage (V) | 18 |
Duty cycle (%) | 60 |
Output current range (A) | 10-200 |
No-load loss (W) | 40 |
Arc-starting | HF |
Efficiency (%) | 85 |
Power Factor(cosΦ) | 0.93 |
Insulation Class | B |
Weight (Kg) | 8.8 |
Dimensions(MM) | 371x155x295 |
Protection Class | IP23 |
Postflow Time(S) | 2.5/5 |
Down-slope Time(S) | — |
Welding Thickness(MM) | 0.3-8 |
