FEATURES:
1.Square wave power supply with good quality,short zero-crossing time of current ensure stable arc.
2.Super capacity of oxide film removing with continuously adjustable Clean width enable nice weld bead.
3.Good arc stiffness,little nosie,easy wire feeding and good formation.
4.Digital display,2T/4T trigger,current can be adjusted by pedal control(pedal control can be extra added)
5.Be able to weld mild steel,stainless steel,copper and Titanor metal etc.,by DC function.also be able to weld aluminium and aluminium-alloy by AC function.
6.Adjustable pluse frequency and pulse current output,suit for many kinds of welding requirements.
Applicable Materials: Aluminum and aluminum-magnesium alloy, alloy steel, carbon steel,copper, titanium alloy.
Scope of Aplication: Auto parts,Motorcycles,bicycles, furniture appliances
PARAMETERS

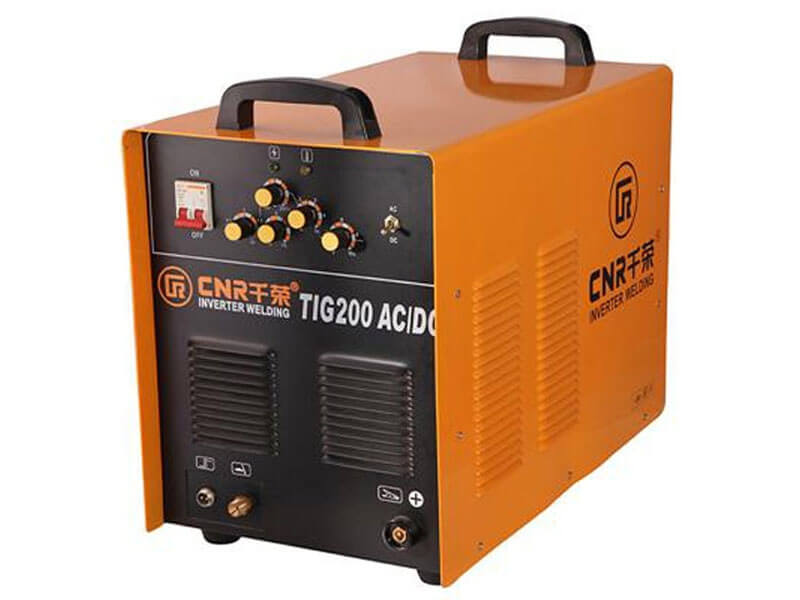

Model | TIG 200 AC/DC |
Input power voltage/frequency(V/Hz) | AC220±15% (Single Phase,50/60Hz) |
Rated input power capacity(KVA) | 4.5 |
Output current Range (A) | 10-200 |
Working Voltage (V) | 18 |
No-load voltage(V) | 56 |
Duty Cycle (%) | 60 |
Arc-starting | HF |
Efficiency | 85 |
Insulation Class | F |
Power Factor(CosΦ) | 0.93 |
Weight(Kg) | 32 |
Dimensions(MM) | 580X335X435 |
Protection Class | IP23 |
Postflow Time (S) | 0-2 |
Clean Width | 20-80 |
Down-slope Time(S) | 0-5 |
Postflow Time (S) | 2-10 |
Romote Control | NO |
Welding Thickness(MM) | 0.5-3 |
