Description:

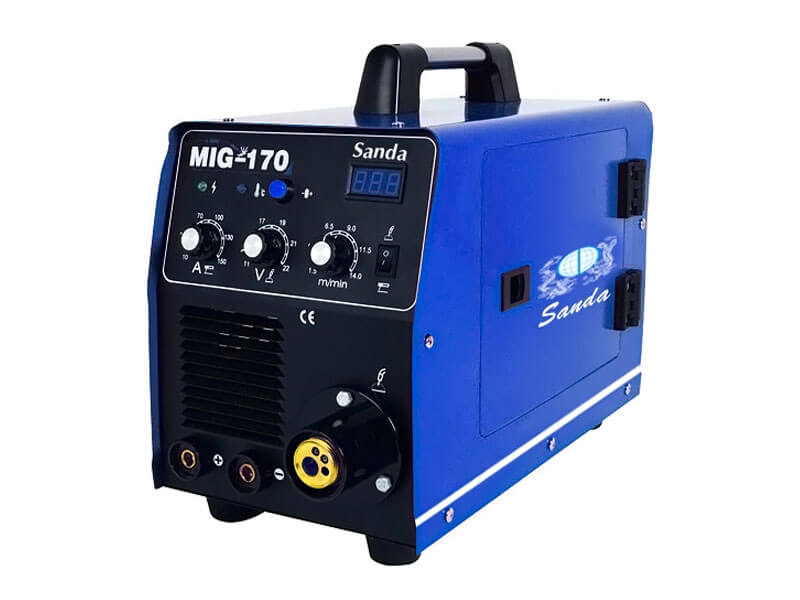

Single phase,fan-cooled,inverter MIG and MMA welding machine IGBT technology,high efficiency Ideal for welding steel,stainless steel,etc....
Technical Parameters
| Power voltage (V): | 220V ± 15% | Frequency | 50/60HZ |
| Rated input power capactiy | 4.5KVA | Output current range | 25-150A |
| Rated output voltage | 13-22V | Duty cycle | 60% |
| Efficiency | 85% | Power factor | 0.93 |
| Insulation class | F | Protection class | IP23 |
| Weight | 12KGS | Overall dimension | 540*230*420mm |
