- Features:
Advanced IGBT inverter technology
* With 20 KHz inverter frequency, greatly reducing the volume and weight of the welder.
* Great reduction in magnetic loss and obviously enhances the welding efficiency and power saving effect.
* Switching frequency is beyond audiorange, which almost eliminates noise pollution.
- Leading control mode
* Top design of auxiliary power supply brings a broader application scope of welding power supply.
* Advanced control solution obviously enhances the welding performance and meets welding technology demands to a larger extent.
* Be able to be widely used in acid, basic electrode welding.
* Easy arc starting, little spattering, stable current and good shaping.
- Improved functional design
* Adjustable thermal arc starting function greatly improves the arc starting performance of the machine.
* Self-adaptive arc-force mode greatly improves the welding performance in long cable welding, and distant welding can be realized.
* Fit for cellulose electrode welding with excellent welding effect(J0701).
Parameters:

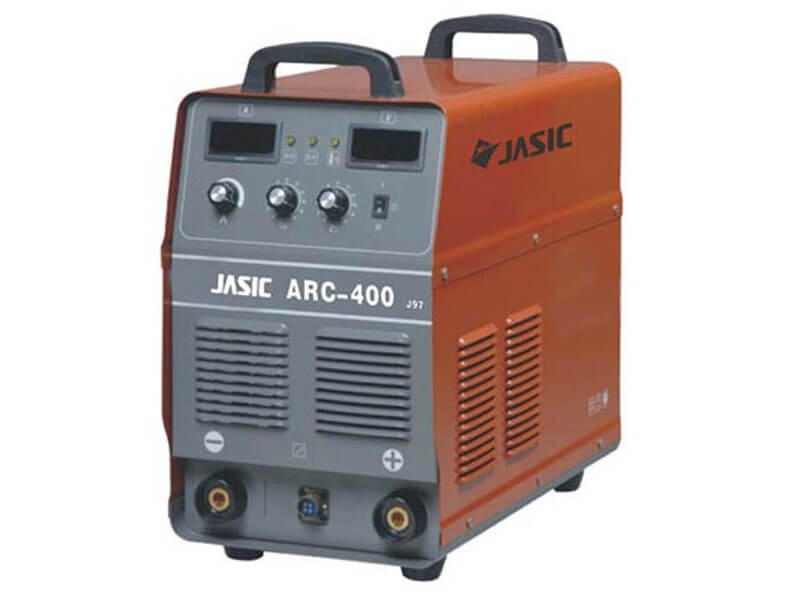

Item | Unit | ARC-400(J45) ARC-400(J97) | ARC-500(J15) | ARC-630(R13) ARC-630(J21) |
Rated input voltage | V/Hz | Three-phase 380V AC | ||
Recommended fuse capacity | A | 40 | 60 | 60 |
Rated output | A/V | 400/36 | 500/40 | 590/44 |
Welding current adjustment range | A | 20—400/20-410 | 20—51 | 40—590/30-640 |
Arc-force adjustment range | A | 0—200/20-200 | 20-200 | 0—100/20-200 |
No-load voltage | V | 68/65 | 67 | 80/72 |
Arc starting current adjustment range | A | 0—150/50-320 | 50-3400 | 0—100/50-500 |
Arc starting time | S | 70mS、150mS、200mS、300mS Optional | ||
Rated duty cycle | % | 60 | 60 | 60 |
| mm | 530×270×430 540×275×510 | 650×330×624 | 670×335×633 650×360×624 |
Weight | Kg | 25/31 | 38 | 61/51 |
Protection class |
| IP21S | IP21S | IP21S |
Implementation standard |
| GB15579.1-2004 | ||
