Features:
Multi-functional, high efficiency, economical and practical.
TIG, MMA and plasma CUT functions available.
Small,light and portable.
Waterproof,anti-static,anti-corrosive and reliable insulation.
Parameters:

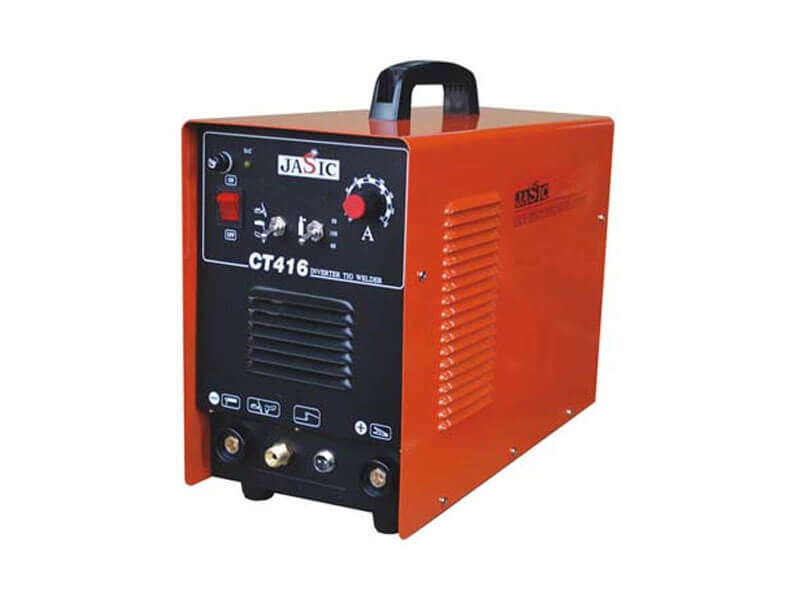

Item Model | CT416(R40) | ||
Function | TIG | MMA | CUT |
Input power voltage/ Frequency（V/Hz） | AC230(Single phase) | ||
Rate input power capacity（KVA） | 4.8 | ||
Rate input power（A） | 13.7 | 21.7 | 25.7 |
Output current range（A） | 10-160 | 10-150 | 20-40 |
Rated output voltage（V） | 16 | 27 | 96 |
Duty cycle（%） | 60 | ||
No-load power（Ｗ） | 40 | ||
Efficiency（%） | 85 | ||
Power factor(COSφ) | 0.93 | ||
Insulation class | B | ||
Protection class | IP21 | ||
Arc-sarting | HF | Touch | Touch |
Weight（KG） | 13.4 | ||
Overall dimension（mm） | 425×205×355 | ||
Air pressure（Mpa） | - | - | 0.4 |
Inner diametor of burner（mm） | - | - | 1.2 |
Gas flow（L/min） | 2-5 | - | 80 |
Max diameter of rod（mm） | - | 3.2 | - |
Max cutting thickness（mm） | - |
| 12 |
