FEATURES:
1. New type and high efficiency,economy and practical
2. One machine has three purposes,be able to work as TIG,MMA and CUT
3. Operation is more convenient,worthy is more than price
Applicable Materials: Steel,aluminum,stainless steel,copper,and weld stainless steel,low carbon steel.high strength steel and Cr-Mo steel ,titanium alloy etc.
Scope of Aplication: Petroleum industry, chemical industry,power supply,metallurgy, shipbuilding,boikers,pressured vessels,pipes,vehicles and aerospace manufacturing
PARAMETERS

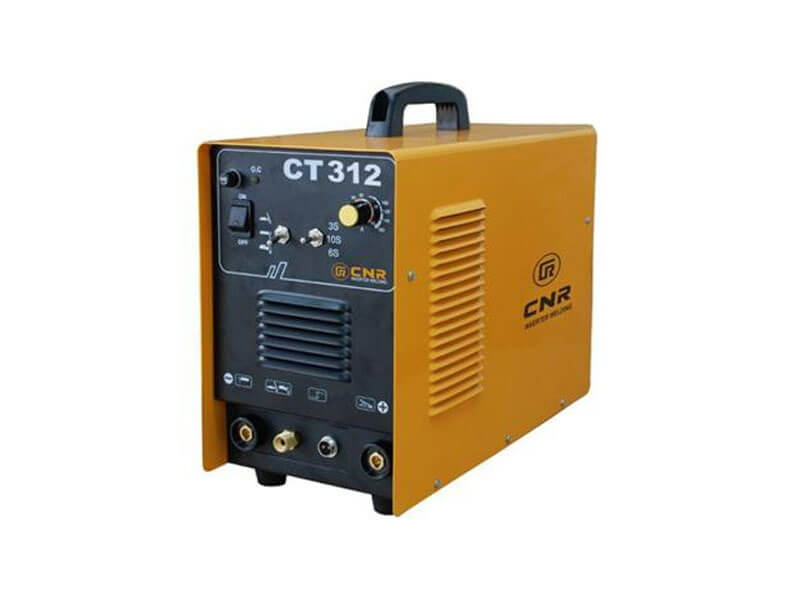

Item Model | CT312 | |||
Function | TIG | MMA | CUT |
|
Input power voltage Frequency(V/Hz) | AC220(Single Phase)±10%,50/60 | |||
Rate input power capacity(KVA) | 3.5 | |||
Rate input power(A) | 10 | 14.7 | 16.5 |
|
Output current range(A) | 10-125 | 10-110 | 10-30 |
|
Rated output voltage(V) | 15 | 25 | 92 |
|
Duty cycle(%) | 60 | |||
No-load power(V) | 35 | |||
Efficiency(%) | 85 | |||
Power factor(cosφ) | 0.93 | |||
Insulation class | B | |||
Protection class | IP23 | |||
Arc-sarting | HF | Touch | Touch |
|
Weight(KG) | 8.6 | |||
Overall dimension(mm) | 371×155×295 | |||
Air pressure(Mpa) | - | - | 0.4 |
|
Inner diametor of burner(mm) | - | - | 1.0 |
|
Gas flow(L/min) | 2-5 | - | 80 |
|
Max diameter of rod(mm) | - | 2.5 | - |
|
Max cutting thickness(mm) | - | - | 8 |
|
