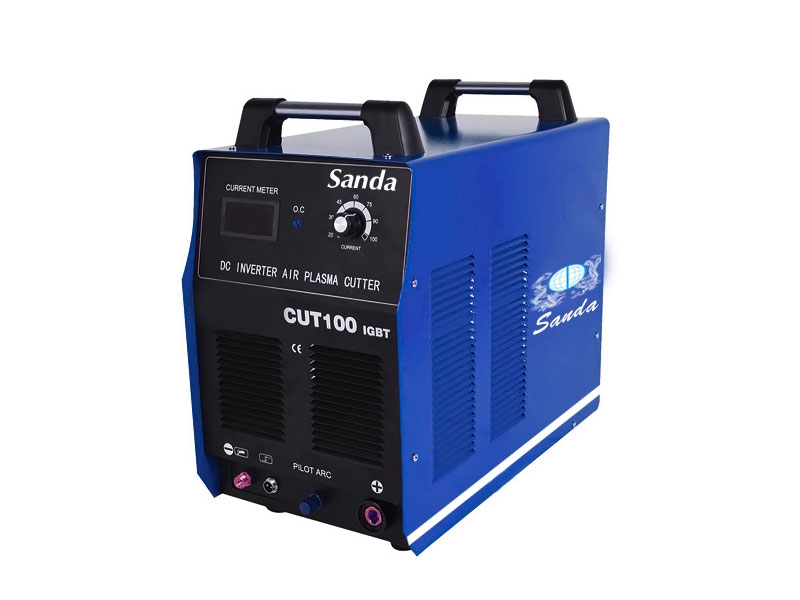

Description:
Fan-cooled,IGBT HF inverter with digital display HF arc-starting,excellent cutting capability Ideal for cutting stainless,copper,iron and aluminium metal,etc....
Technical Parameters
Power voltage (V): | 380V ± 10% | Frequency | 50/60HZ |
Rated input power capactiy | 16.5KVA | Output current range | 20-100A |
Rated output voltage | 130 V | Duty cycle | 60% |
Efficiency | 85% | Power factor | 0.93 |
Insulation class | F | Protection class | IP23 |
Weight | 36KGS | Overall dimension | 460*334*491MM |
