Description:

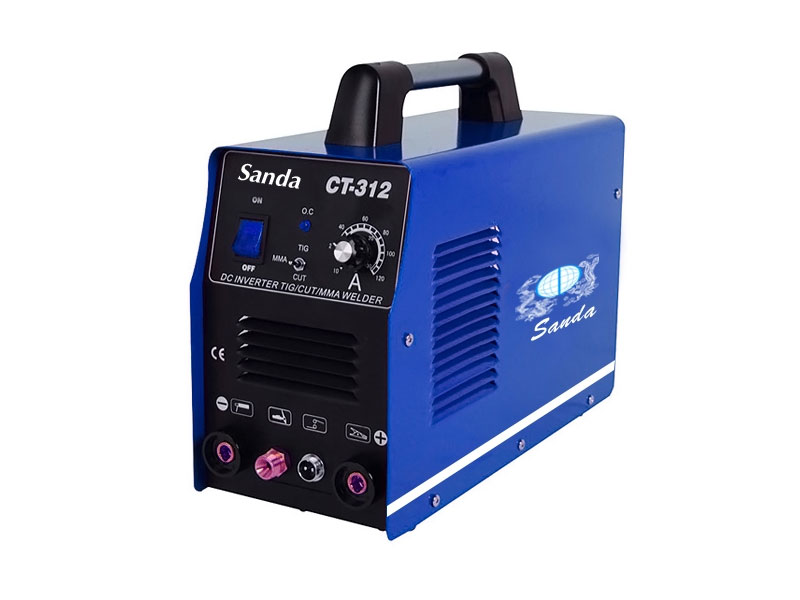

Suitable for CUT/MMA/TIG,multi-function on one machine Ideal for carbon steel,stainless steel,alloy steel,etc....
Technical Parameters
Power voltage (V): | 220V ± 15% | Frequency | 50/60HZ |
Rated input power capactiy | 3.5KVA | Output current range | 10-125A(TIG) 10-110(MMA) 10-30(CUT) |
Rated output voltage | 15V(TIG)/24.4(MMA)/92(CUT) | Duty cycle | 60% |
Efficiency | 85% | Power factor | 0.93 |
Insulation class | F | Protection class | IP23 |
Weight | 8.6KGS | Overall dimension | 371*153*299MM |
